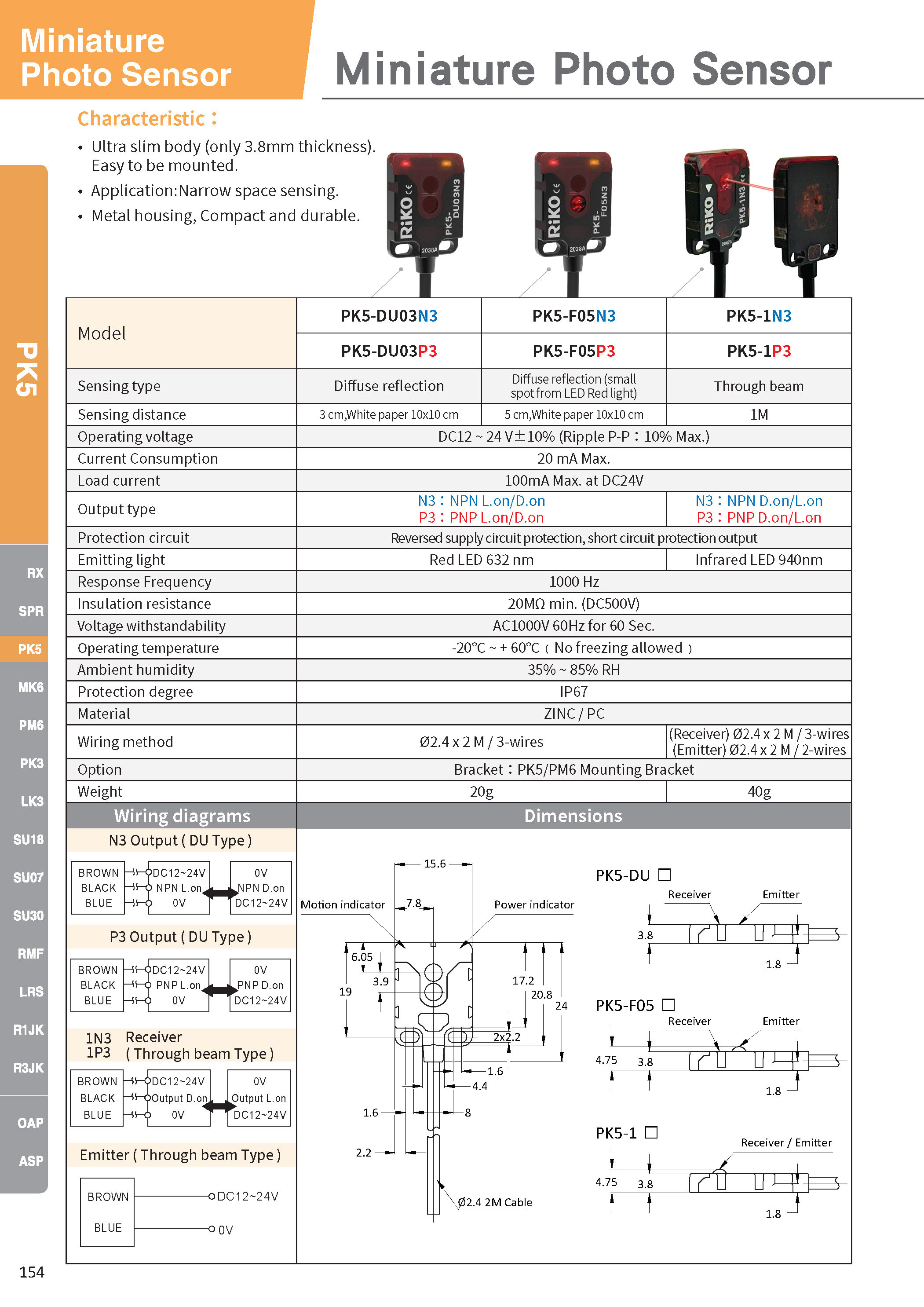

PK5-F05N3 Photo sensor
? Ultra slim body (only 3.8mm thickness).
? Application : Narrow space sensing.
?Metal shell, sturdy and durable.
Description
Specification
| Model | Miniature Photo Sensor |
|---|---|
| Sensing distance | Diffuse reflection (small spot from LED Red light) |
| Detection distance | 5 cm,White paper 10x10 cm |
| Light Emitter | Red LED 632 nm |
| Operating voltage | DC12 ~ 24 V±10% (Ripple P-P：10% Max.) |
| Current consumption | 20 mA Max. |
| Model / Type | NPN L.on/D.on |
| Protection circuit | Reversed supply circuit protection, short circuit protection output. |
| Response time | 1000 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -20℃ ~ + 60℃﹙No frosting allowed﹚ |
| Operating temperature | 35% ~ 85% RH |
| Protection degree | IP67 |
| Wiring method | ?2.4 x 2 M / 3-wires |
| Option | Bracket : PK5 / PM6 Mounting Bracket |
| Weight | 20g |
