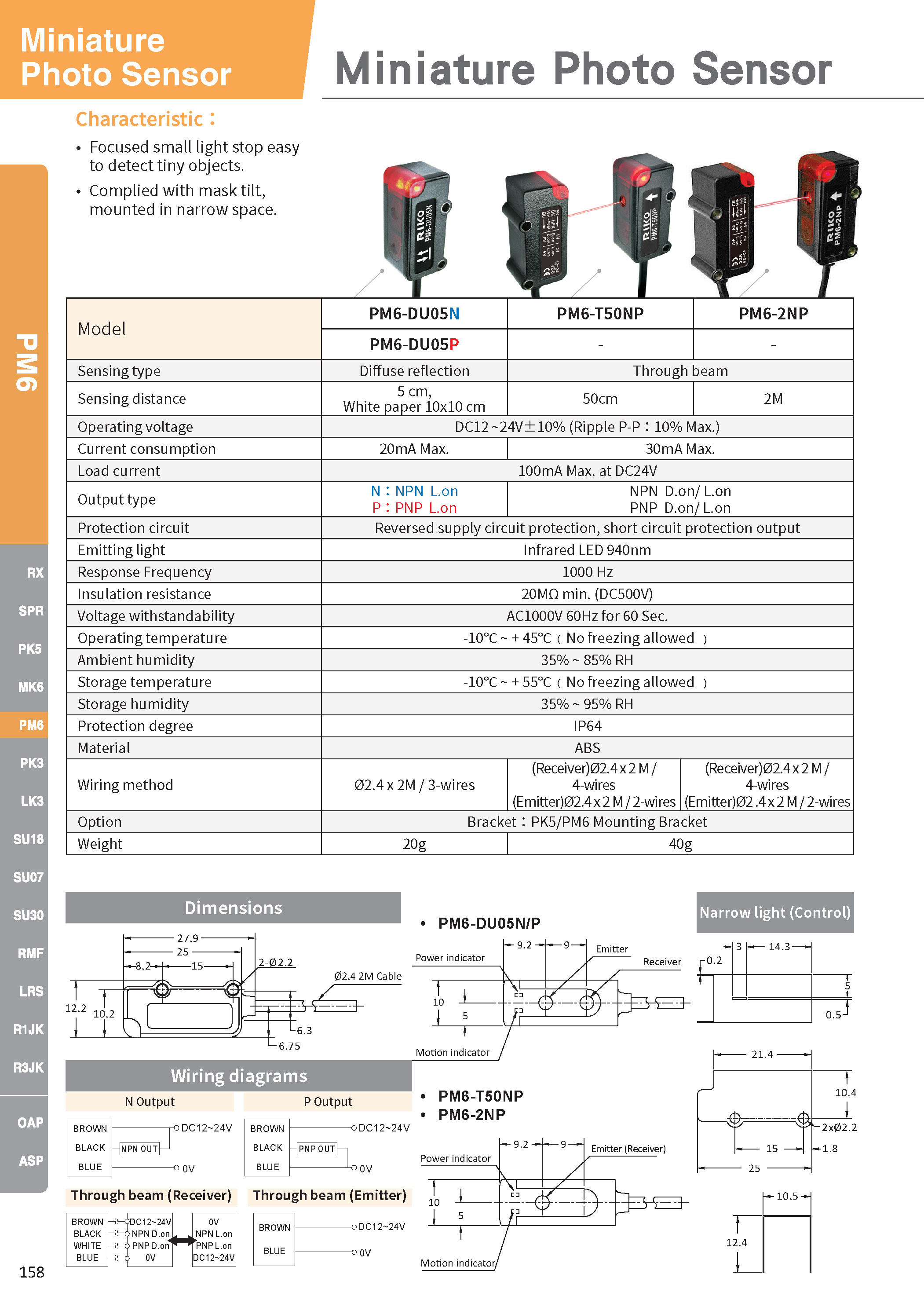

PM6-2NP Photo sensor
? Focused small light stop easy to detect tiny objects.
? Complied with mask tilt , mounted in narrow space.
Description
Specification
| Model | Miniature Photo Sensor |
|---|---|
| Sensing distance | Through beam |
| Detection distance | 2M |
| Light Emitter | Infrared LED 940nm |
| Operating voltage | DC12 ~24V±10% (Ripple P-P：10% Max.) |
| Current consumption | 30mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN D.on/ L.on , PNP D.on/ L.on |
| Protection circuit | Reversed supply circuit protection, short circuit protection output |
| Response time | 1000 Hz |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -10℃ ~ + 45℃﹙No freezing allowed﹚ |
| Operating temperature | 35% ~ 85% RH |
| Storage temperature | -10℃ ~ + 55℃﹙No freezing allowed﹚ |
| Storage humidity | 35% ~ 95% RH |
| Protection degree | IP64 |
| Casing material | ABS |
| Wiring method | (Receiver) ?2.4 x 2 M / 4-wires (Emitter) ?2 .4 x 2 M / 2-wires |
| Option | Bracket：PK5/PM6 Mounting Bracket |
| Weight | 40g |
