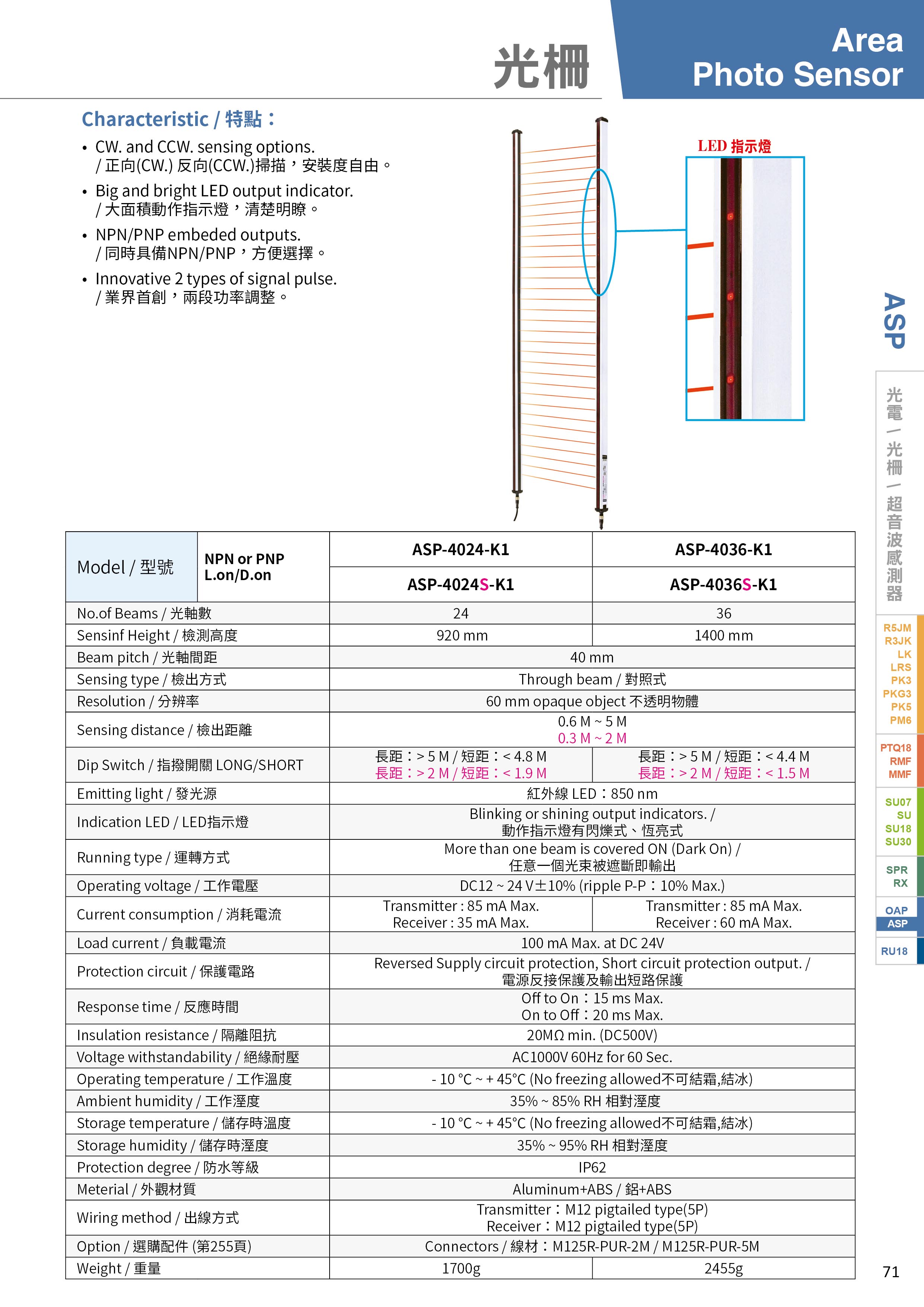

ASP-4024-K1 Area Sensor
? CW. and CCW. sensing options.
? Big and bright LED output indicator.
? NPN/PNP embeded outputs.
? Innovative 2 types of signal pulse.
Description
Specification
| Model / Type | NPN or PNP L.on / D.on |
|---|---|
| No. of Beams | 24 |
| Detection height | 920 mm |
| Beam pitch | 40 mm |
| Sensing distance | Through beam / 對照式 |
| Resolution | 60 mm opaque object |
| Detection distance | 0.6 M ~ 5 M |
| Dip Switch / LONG / SHORT | 長距：≧ 5 M / 短距：≦ 4.8 M |
| Light Emitter | Infrared LED : 850 nm |
| Indication LED | Blinking or shining output indicators. |
| Running type | More than one beam is covered ON (Dark On) |
| Operating voltage | DC12 ~ 24 V±10% (ripple P-P：10% Max.) |
| Current consumption | Transmitter : 85 mA Max. Receiver : 60 mA Max. |
| Load current | 100 mA Max. at DC 24V |
| Protection circuit | Reversed Supply circuit protection, Short circuit protection output. |
| Reaction time | Off to On：15 ms Max. On to Off：20 ms Max. |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC 1000V 60Hz for 60 Sec. |
| Opera tetemperature | - 10 ℃ ~ + 45℃ No freezing allowed |
| Operating temperature | 35% ~ 85% RH |
| Storage temperature | - 10 ℃ ~ + 45℃ No freezing allowed 不可結(jié)霜,結(jié)冰 |
| Storage humidity | 35% ~ 95% RH |
| Protection degree | IP62 |
| Casing material | Aluminum+ABS |
| Wiring method | Transmitter : M12 pigtailed type (5P) Receiver : M12 piqtailed type (5P) |
| Option | Connectors : M125R-PUR-2M / M125R-PUR-5M |
| Weight | 1700g |
