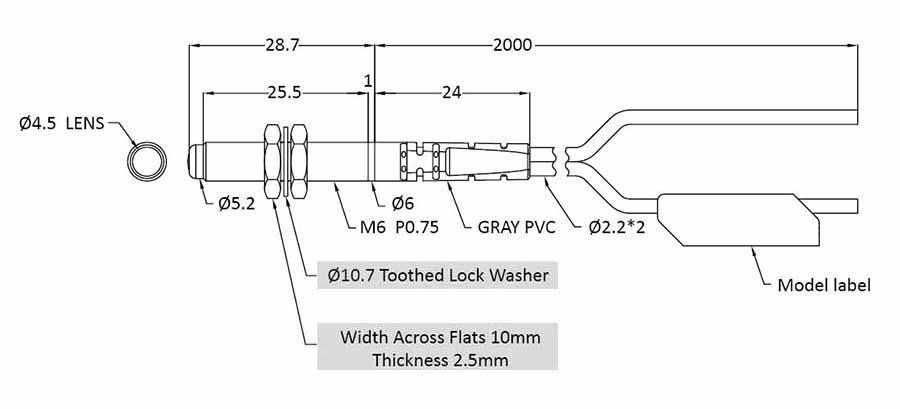

PRC-620-L35 Lens Built in Fiber Sensor
? Fiber Type：Lens Built in Fiber Optics Sensor
? Light spot : 3.5 mm from the 30 mm
Description
檢測螺姆有無倒角
在距離3cm高時，光點?3.5mm適用在震動盤上檢測螺母(10x10mm)有無倒角加工及一般情況下檢測小物件。
Specification
| Fiber diameter | OD=?2.2,ID=?0.OD=?2.2 ; ID=?0.5x1 / ?0.269x95 |
|---|---|
| SD | 35mm |
| Opera tetemperature | -55℃~+70℃ |
| Mini.bending radius | R25 |
| Light spot | 3.5 mm from the 30 mm |
