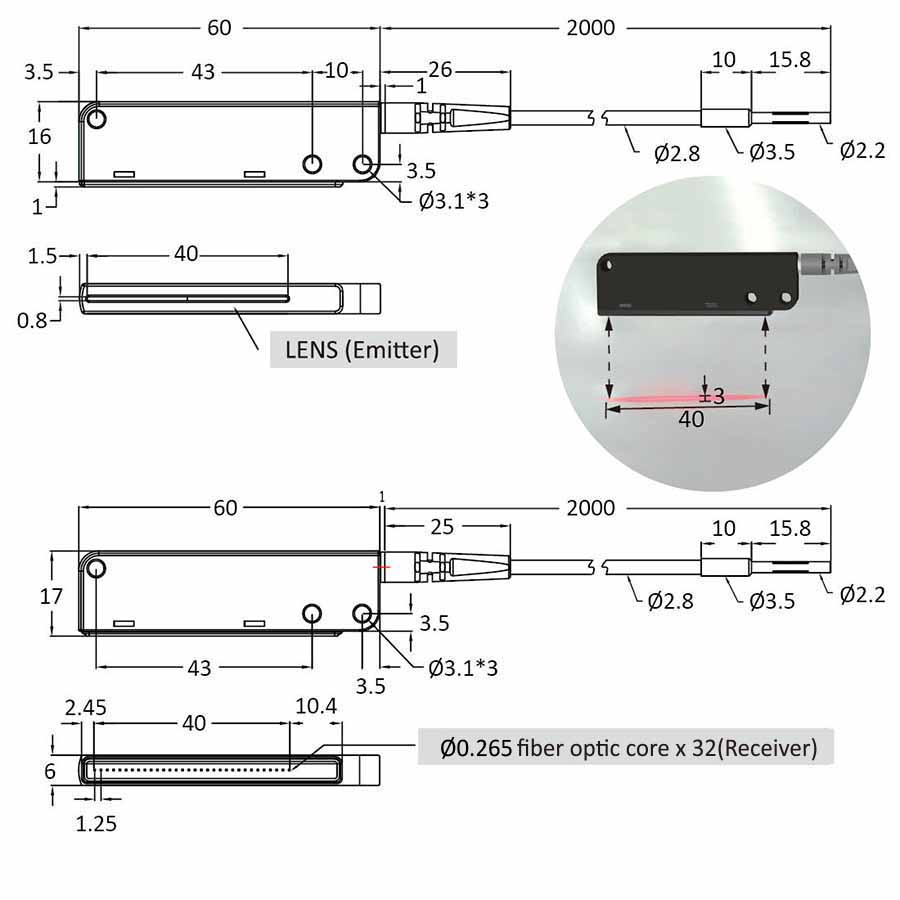

PT-060AL-20 Array Fiber optics
? Fiber Type：Lens built in Array Fiber optics Sensor
? Sensing width : 40mm
Description
Specification
| Model | Plastic Fiber Optic |
|---|---|
| Fiber diameter | OD=?2.8 ; ID=?0.265x32 |
| SD | 450mm |
| Sensing width | 40mm |
| Opera tetemperature | -55℃~+70℃ |
| Mini.bending radius | R60 |
| Light angle | 3° |
| Reception angle | 60° |
